xتفاصيل المنتج
| نوع البطارية | li-ion/lifepo4 | تعداد الخلايا | 8S-16S |
|---|---|---|---|
| التصنيف الحالي | 100A-200A | واجهات الاتصال | RS485/RS232/CAN/BT |
| دعم مواز | 15 حزم بطارية | وظيفة SOC | التعلم التلقائي |
| تخزين البيانات | 400 سجلات تاريخية | دعم ما قبل الشحن | سريع ذكي |
| عرض خيارات | LCD (اختياري) | توافق العاكس | Pylontech ، Goodve ، Growatt ، Victron Energy |
| نطاق التخصيص | 3S-32S بطاريات الليثيوم | دعم التطبيقات المحمولة | نعم |
| دعم شاشة اللمس | شاشة ملونة اللمس | واجهة الكمبيوتر | الكمبيوتر العلوي |
| الترقية عبر الإنترنت | نعم | ||
| إبراز | 16S Lifepo4 BMS with RS485,200A Smart BMS with CAN BT,8S-16S BMS with warranty,200A Smart BMS with CAN BT,8S-16S BMS with warranty |
||
منتوج وصف
KLS 8S-16S 50A-200A 24V-48V LiFePO4 Lithium Battery Protection Board
Product Overview
The KLSKF-113 is a high-performance Battery Management System (BMS) specifically designed for energy storage battery packs. Compatible with various lithium battery types including lithium-ion and lithium iron phosphate (LiFePO4), this smart BMS offers comprehensive protection and monitoring capabilities.
Key Features
- Comprehensive protection functions for charging and discharging
- SOC/SOH automatic learning with 400-point historical data storage
- Multiple communication options: RS485/RS232/Bluetooth/CAN
- Supports parallel connection of up to 15 battery packs
- Compatible with mainstream inverters (PYLONTECH, GOODVE, Growatt, Victron, etc.)
- Fast intelligent pre-charging capability
- Multi-platform support: Mobile APP, color touch screen, and computer software
Technical Specifications
| Product Name | 8S-16S, 100A-200A Li-ion/LiFePO4 Smart BMS with LCD (optional) |
|---|---|
| Model | KLSKF-113 |
| Standard Version | Common port for charge/discharge |
| Customization | Available for 3S-32S lithium batteries with different current ratings |
| MOQ | 1 piece |
| Delivery Time | 1-7 working days |
| Packaging | Bubble bag/box |
Applications
The KLSKF-113 BMS excels in home energy storage applications, offering excellent performance, high reliability, and cost-effective solutions. Its multiple communication methods enable intelligent battery management through computer software or mobile apps.

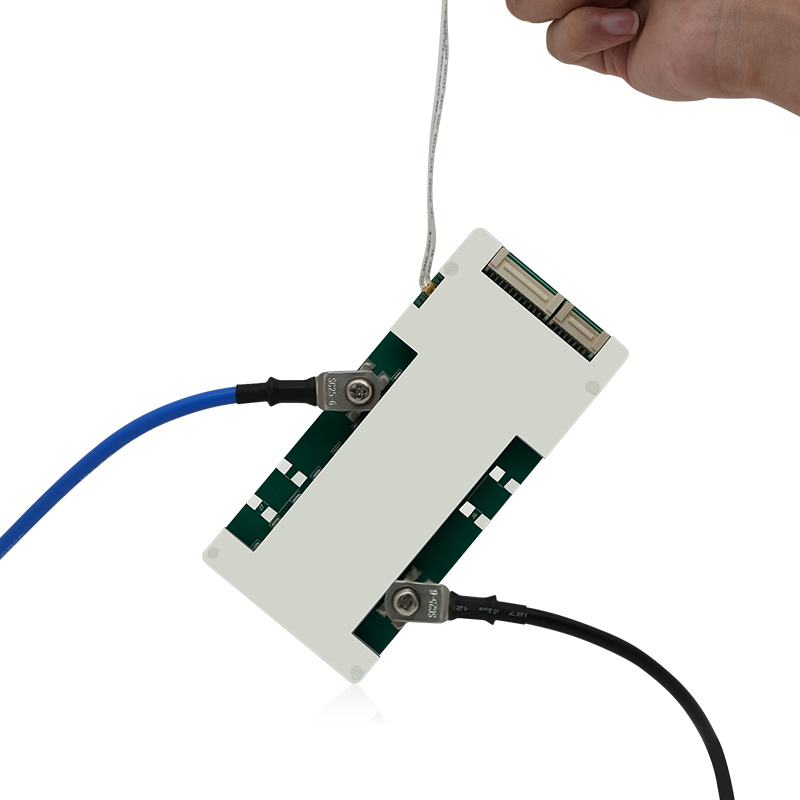

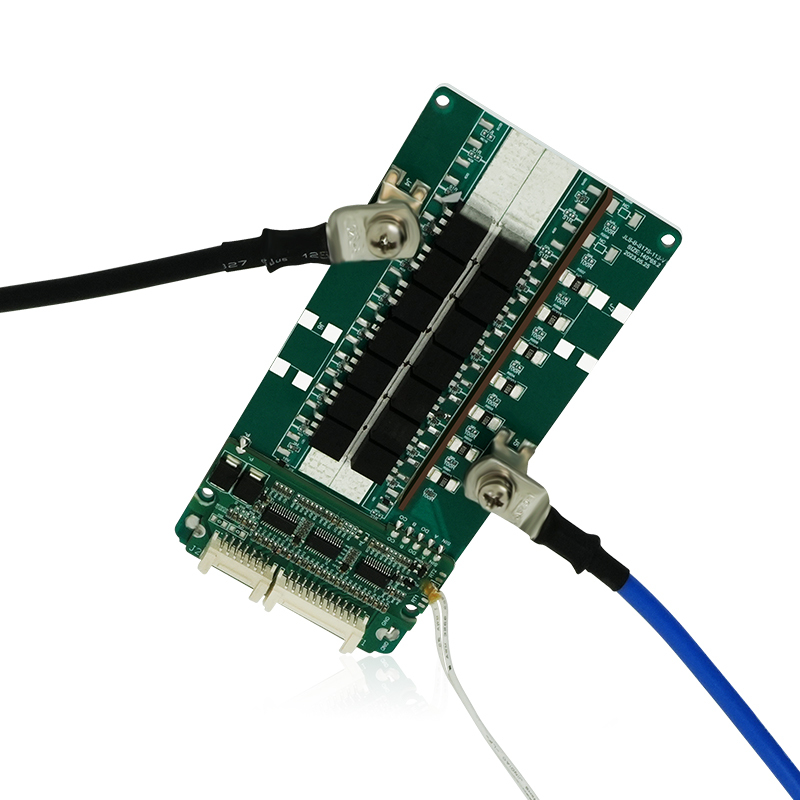

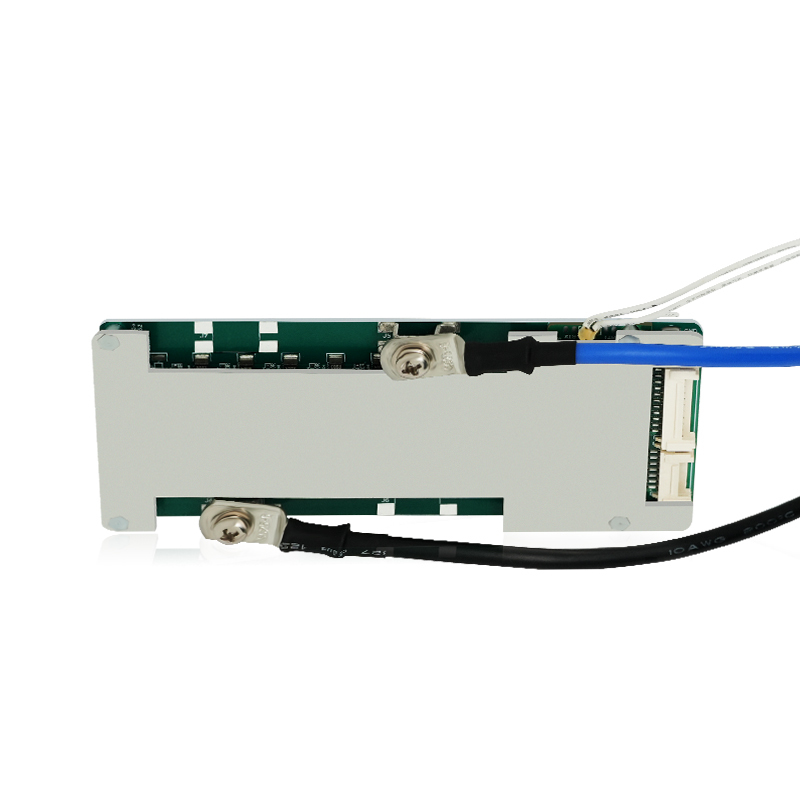

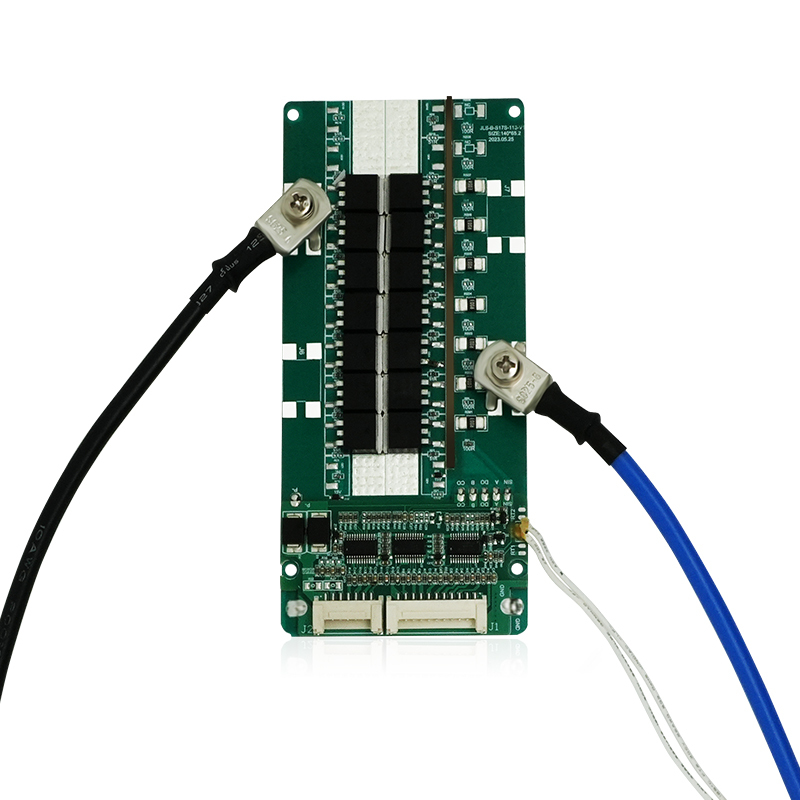

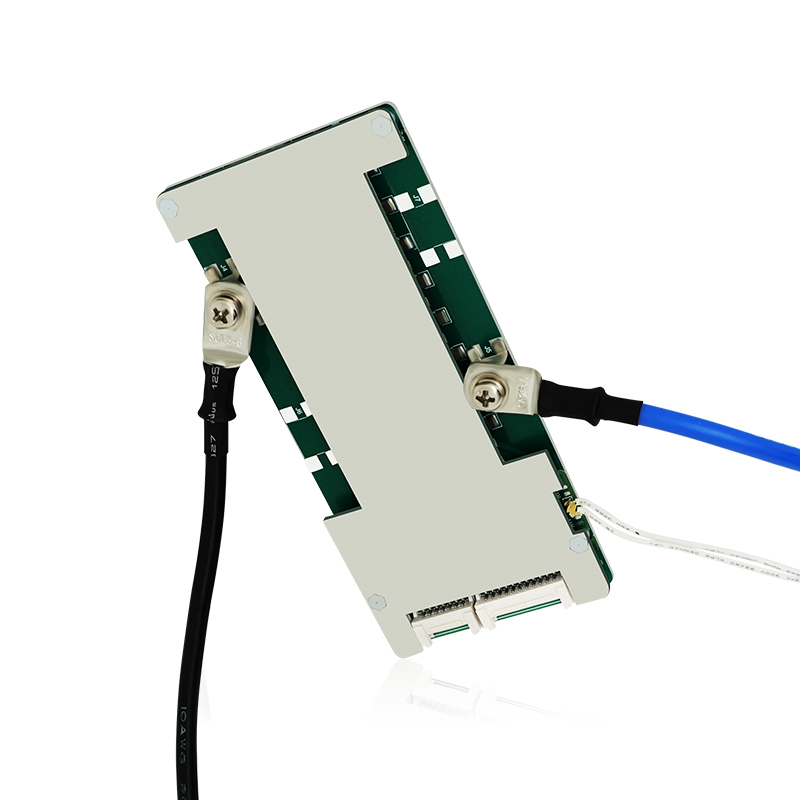

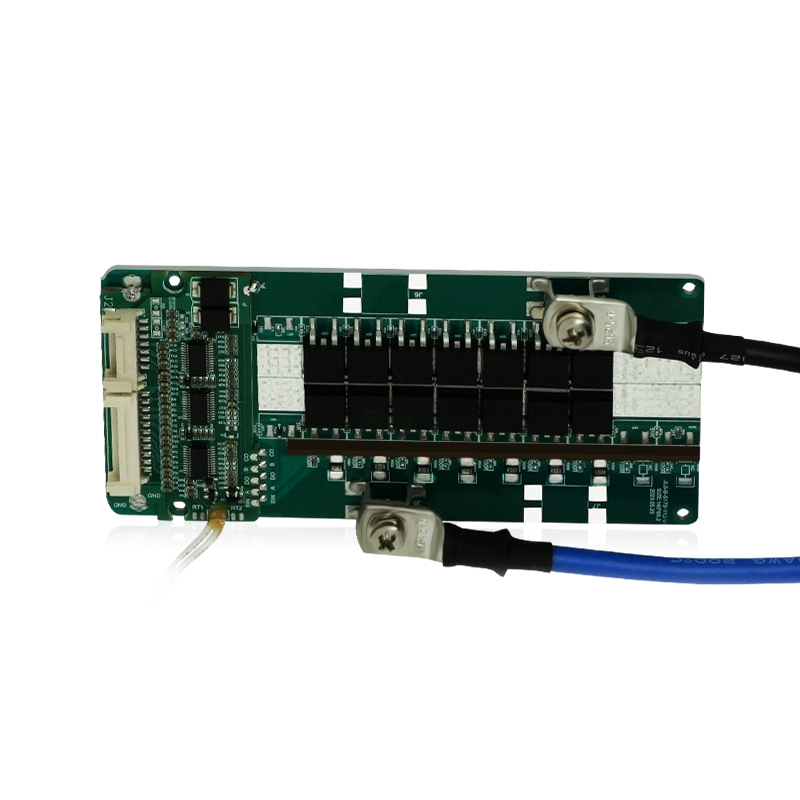

Product Images
Certifications
Packaging
Frequently Asked Questions
Why choose KLS BMS?
- 13+ years of technical support and efficient after-sales service
- FCC, CE, ROHS, ISO certified products
- Competitive factory pricing with controllable delivery times
- FCC, CE, ROHS, ISO certified products
- Competitive factory pricing with controllable delivery times
What battery types do you support?
We specialize in BMS solutions for power batteries, energy storage batteries, and consumer batteries, primarily for LFP and NCM battery chemistries.
What are your MOQ and lead times?
- Minimum order quantity: 1 piece
- ODM customization available
- 1-3 days for existing samples, 3-15 days for customized samples
- Batch delivery time depends on quantity
- ODM customization available
- 1-3 days for existing samples, 3-15 days for customized samples
- Batch delivery time depends on quantity
What payment methods do you accept?
We accept TT wire transfer, cash, Visa, Mastercard, PayPal, Apple Pay, Google Pay, and real-time bank transfers (RMB).
How do you ensure product quality?
- Strict inspection procedures from raw materials to shipment
- Full implementation of quality control measures
- FCC, CE, ROHS, ISO certified
- 2-year after-sales warranty service
- Full implementation of quality control measures
- FCC, CE, ROHS, ISO certified
- 2-year after-sales warranty service
How to select the right BMS for my battery?
Consult our customer service with your battery's voltage and current specifications, and we'll recommend the most suitable battery management system.
About KLS
Shenzhen Kinglisheng New Energy Technology Co., Limited (KLS) was established in 2014 in Shenzhen, China. We offer full PCBA design and production capabilities for both surface-mount and through-hole technology components. Our skilled engineers can design and produce customized PCB assemblies to your exact specifications, with turnkey solutions available for complete material procurement and production.
Contact Us:
Email: sales5@klspcba.com
WhatsApp/WeChat available for BMS assistance
Email: sales5@klspcba.com
WhatsApp/WeChat available for BMS assistance
